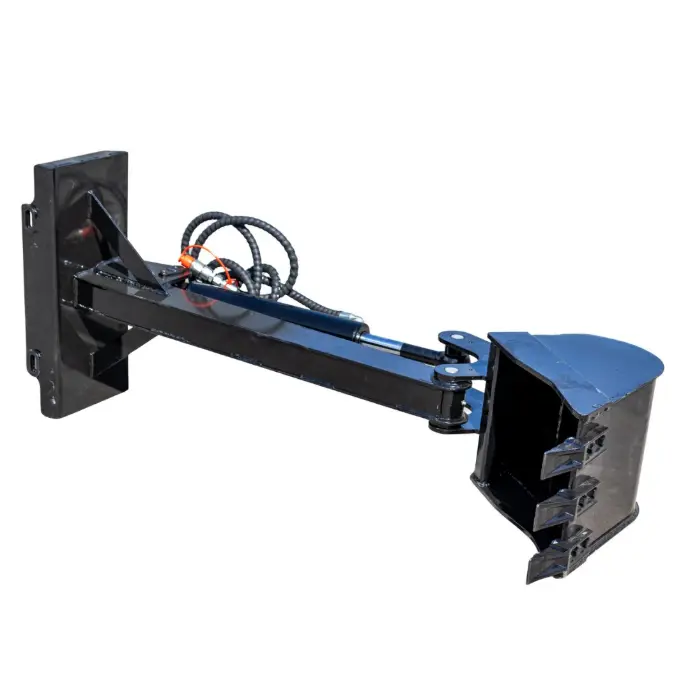

Mini Skid 59 inches Steer Backhoe Attachment GIYI GY-ZWB
Description:
The GY-ZWB (59" Steer Backhoe with Controller): This model functions as a true, independent backhoe arm. Because it has its own dedicated multi-spool valve bank (the controller/joysticks you mentioned) mounted directly on the attachment, you hook up the hydraulic lines to your mini skid steer and lock the continuous flow auxiliary hydraulics on. The skid steer simply acts as a constant hydraulic power unit. You then stand at the attachment’s control station to operate multiple functions (boom swing, boom lift, dipper stick, and bucket curl) independently and simultaneously. This design provides high digging force (rated up to 60KN) and precise, excavator-like control.
Specifications:
- Attachment Type: Articulated Backhoe with Control Block
- Overall Frame Length: 59 inches (1500 mm)
- Operation Method: Controller (Requires machine's hydraulic continuous flow / detent mode)
- Maximum Digging Force: Up to 60 KN
- Swing Angle Range: 180 Degrees (Left / Right Hydraulic Swing)
- Mounting Interface: Mini Quick-Attach Plate
- Ideal Applications: Dedicated excavation, utility trenching, footings, and landscaping.
The GY-ZWB (59" Steer Backhoe with Controller): This model functions as a true, independent backhoe arm. Because it has its own dedicated multi-spool valve bank (the controller/joysticks you mentioned) mounted directly on the attachment, you hook up the hydraulic lines to your mini skid steer and lock the continuous flow auxiliary hydraulics on. The skid steer simply acts as a constant hydraulic power unit. You then stand at the attachment’s control station to operate multiple functions (boom swing, boom lift, dipper stick, and bucket curl) independently and simultaneously. This design provides high digging force (rated up to 60KN) and precise, excavator-like control.
Specifications:
- Attachment Type: Articulated Backhoe with Control Block
- Overall Frame Length: 59 inches (1500 mm)
- Operation Method: Controller (Requires machine's hydraulic continuous flow / detent mode)
- Maximum Digging Force: Up to 60 KN
- Swing Angle Range: 180 Degrees (Left / Right Hydraulic Swing)
- Mounting Interface: Mini Quick-Attach Plate
- Ideal Applications: Dedicated excavation, utility trenching, footings, and landscaping.
| Color: Black |
| Condition: New |
| Year: 2025 |
